MayTec profiles can easily be combined with other profile systems.

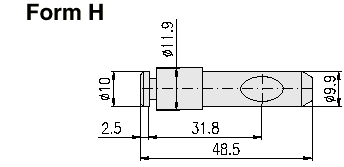

Two (2) points have to be considerd when combining with other profiles : 1. Anchor head-form and size The MayTec system provides 3 anchor head sizes. Shouldn't any of the sizes fit into the slots of the other profile, the anchor head can be made to fit as required. |
![]() |
|
![]() |
|
![]() |
|
![]() |

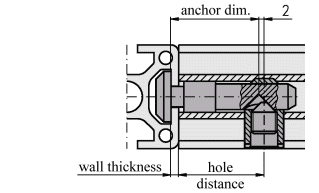

2. Hole distance
During the maching of the cross bore the hole distance has to match the wall thickness of the profile. hole distance = anchor dim. - wall thinkness + 2 mm |
Anchor connections wich combine with item profiles
Profile | Anchor | |
ItemUnit construction 5 |
![]() |
![]() |
Description | Order-No. | |
Special anchorr for Item 5 | 1.20.A2J5 | |
* deviates from the standard execution | ||
Unit construction 8, light | ||
![]() |
![]() |
|
Description | Order-No. | |

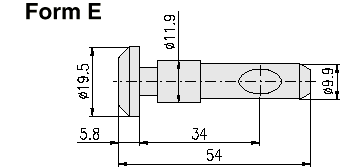

MayTec-anchor | All Anchor with E-head | |
Unit
construction 8, heavy duty |
||
![]() |
![]() |
|
Description | Order-No. | |
Special anchor for Item 8 | 1.21.A3J8 | |
* deviates from the standard execution |
Anchor connections wich combine with Bosch-Profilen
Profile | Anchor | |
Bosch Profiles with slot width 8 mm |
![]() |
![]() |
Description | Order-No. | |
MayTec-anchor | All anchors with F-headf | |
Profiles with slot width 10 mm | ![]() |
![]() |
Description | Order-No. | |
MayTec-anchor | All anchors with E-head |
